Beer Dispensing & Packaging equipment

D TYPE

BEST：

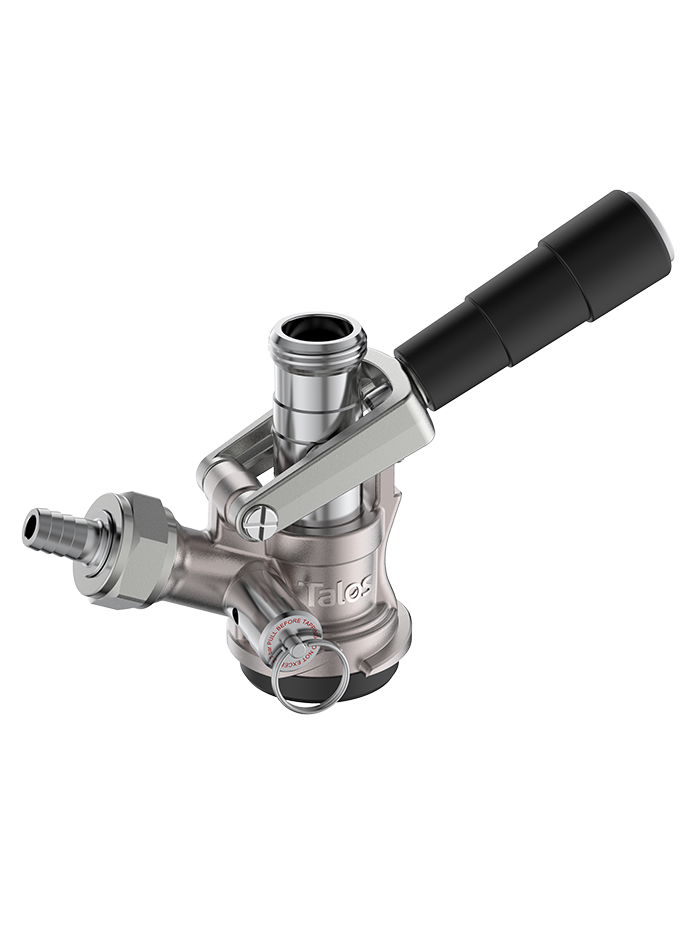

D coupler built with a brass body, but with a stainless steel probe, and handle. Talos coupler is one of the most trusted couplers.

KEGERATOR DESGIN：

Talos short couplers are suitable for proper refrigeration, with intake and output of beer on both sides. This innovative coupler is great for any bar system.

Customized scheme

Specification parameters

Part No.
Probe Material
Body Material
Handle
Surface
Pressure Relief Valve
Gas Port O.D.

1022601
SS304
Brass
SS304
Tin-nickel Plated
/
ф8mm

1022618
SS304
SS304
SS304
S.S
/
ф8mm

1022701
SS304
Brass
SS304
Tin-nickel Plated
46~55 PSI
ф10mm

1022718
SS304
SS304
SS304
S.S
46~55 PSI
ф10mm

1022709
Brass
Brass
Brass
Tin-nickel Plated
46~55 PSI
ф10mm

1022704
SS304
Brass
Brass
S.S
46~55 PSI
ф10mm

1022720
SS304
SS304
SS304
S.S
46~55 PSI
ф10mm

1022719
Brass
Brass
Brass
Tin-nickel Plated
46~55 PSI
ф10mm

Packaging information

Part No.
N.W/Unit (Kg)
Unit Dimension
G.W/Unit(Kg)
Pcs/ Ctn
Box Dimension
G.W/Box(Kg)

1022601
0.61
17.5cm Lx10cm Wx6cm H
0.68
40
41.5cm Lx36.5cm Wx32cm H
27.86

1022618
0.61
17.5cm Lx10cm Wx6cm H
0.68
40
41.5cm Lx36.5cm Wx32cm H
27.86

1022701
0.61
17.5cm Lx10cm Wx6cm H
0.68
40
41.5cm Lx36.5cm Wx32cm H
27.86

1022718
0.61
17.5cm Lx10cm Wx6cm H
0.68
40
41.5cm Lx36.5cm Wx32cm H
27.86

1022709
0.51
17.5cm Lx10cm Wx6cm H
0.58
40
41.5cm Lx36.5cm Wx32cm H
23.86

1022704
0.51
17.5cm Lx10cm Wx6cm H
0.58
40
41.5cm Lx36.5cm Wx32cm H
23.86

1022720
0.51
17.5cm Lx10cm Wx6cm H
0.58
40
41.5cm Lx36.5cm Wx32cm H
23.86

1022719
0.51
15cm Lx13.2cm Wx6.2cm H
0.59
20
33.5cm Lx31.5cm Wx28cm H
12.31
